Classic confinement for grafito

Abuelodelanada · June 11, 2025, 4:43pm

To make the review of your request easier, please use the following template to provide all the required details and also include any other information that may be relevant.

name: grafito
description: Grafito is a simple, self-contained web-based log viewer for journalctl. It provides an intuitive interface to browse and filter system logs directly from your web browser.
snapcraft: URL pointing to the snapcraft.yaml if publicly available
upstream: URL pointing to the upstream repository, if open-source. Otherwise, ‘PRIVATE’
upstream-relation: I’m a grafito user who would love a better way to install it.
supported-category: tools for local (?)
reasoning: As far as I understand there is no interface that let run systemctl list-units. Without classic confinement this application can’t execute systemctl list-units.

This is the log I see when I run it without classic confinement:

$ grafito
2025-06-06T14:08:20.024732Z   INFO - grafito: Starting Grafito server on 127.0.0.1:3000
2025-06-06T14:08:20.024733Z   WARN - grafito: Basic Authentication is DISABLED. To enable, set GRAFITO_AUTH_USER and GRAFITO_AUTH_PASS environment variables.
2025-06-06T14:08:20.024837Z   INFO - kemal: [development] Kemal is ready to lead at http://127.0.0.1:3000
2025-06-06T14:08:26.221941Z   INFO - kemal: 200 GET /?priority=5&col-visible-timestamp=on&col-visible-hostname=on&col-visible-unit=on&col-visible-priority=on&col-visible-message=on 1.37ms
2025-06-06T14:08:26.246603Z  DEBUG - grafito: Received /services request
2025-06-06T14:08:26.246603Z  DEBUG - journalctl: Executing Journalctl.known_service_units
2025-06-06T14:08:26.246618Z  DEBUG - journalctl: Generated systemctl command: ["systemctl", "list-units", "--type=service", "--all", "--no-legend", "--plain"]
2025-06-06T14:08:26.247327Z  ERROR - journalctl: Error executing systemctl for known_service_units.
Error executing process: 'systemctl': Permission denied (File::AccessDeniedError)
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from /snap/grafito/x1/bin/grafito in '??'
  from ???

2025-06-06T14:08:26.247346Z   INFO - kemal: 500 GET /services 767.84µs
2025-06-06T14:08:26.251502Z  DEBUG - grafito: Received /logs request with query params: URI::Params{"q" => [""], "unit" => [""], "tag" => [""], "hostname" => [""], "since" => [""], "priority" => ["5"], "col-visible-timestamp" => ["on"], "col-visible-hostname" => ["on"], "col-visible-unit" => ["on"], "col-visible-priority" => ["on"], "col-visible-message" => ["on"]}

I understand that strict confinement is generally preferred over classic.

I’ve tried the existing interfaces to make the snap to work under strict confinement.

Note that snappy-debug can be used to identify possible required interfaces. See https://snapcraft.io/docs/debug-snaps for more information.

store-requests-bot · June 11, 2025, 5:00pm

This request has been added to the queue for review by the @reviewers team.

yomonokio · June 12, 2025, 8:19am

Hello @Abuelodelanada,

Since grafito is a log viewer snap, it does not fall into any of the supported categories for classic confinement, therefore, the requirement cannot be satisfied (#reject).

Regarding the error you’re encountering, it seems that your snap is attempting to run systemctl list-units. As a log viewer, isn’t it expected to simply read logs and apply filtering to them?

@reviewers, what are your thoughts on this?

Abuelodelanada · June 24, 2025, 2:58pm

Hello @yomonokio !

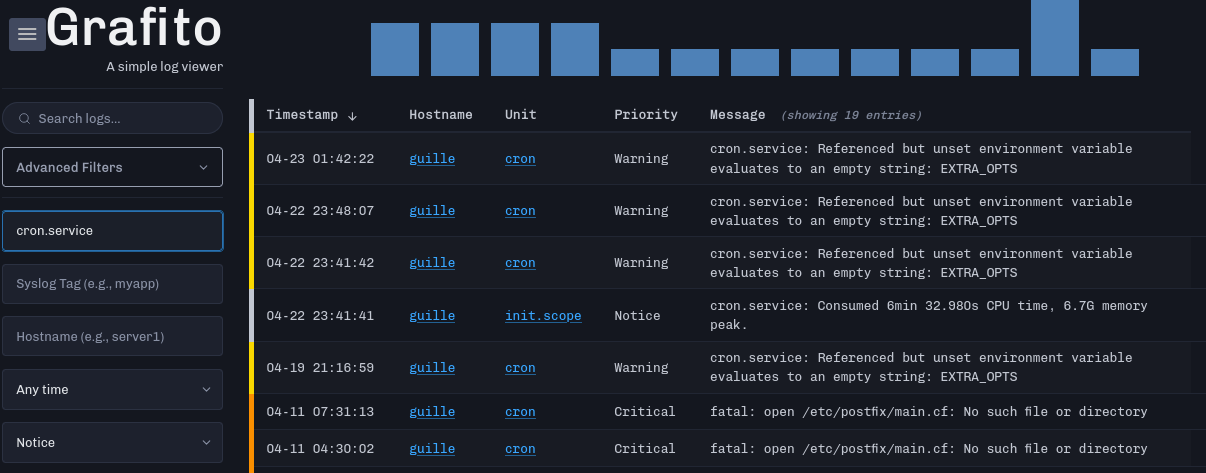

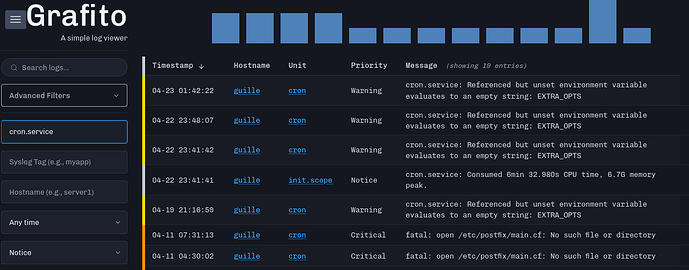

It is used to filter logs by systemd unit:

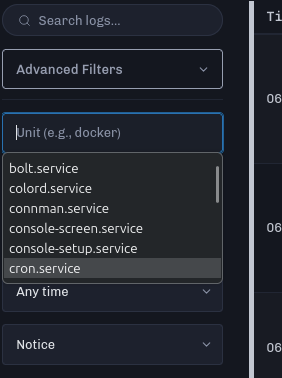

This way you can see:

ogra · June 24, 2025, 3:08pm

You could use a system-files interface with read-only access to /etc/systemd/system and /lib/systemd/system to obtain the list of .service files instead, this would likely be acceptable security wise …

Without fitting a matching category (which exist for a reason to only allow pre-checked types of apps that the architects reviewed in advance with the security team for being acceptable) there is simply no way this app gets accepted for classic confinement …

Abuelodelanada · June 24, 2025, 3:21pm

It’s not my app, I’m just a user trying to contribute the snap.

Thanks @ogra!!

ogra · June 24, 2025, 3:45pm

So lets do a little research …

Taking a quick look at the code, it calls:

systemctl list-units --type=service --all --no-legend --plain

github.com

ralsina/grafito/blob/main/src/journalctl.cr#L350



            fake_units = FakeJournalData::SAMPLE_UNIT_NAMES.compact.uniq.sort
            Log.debug { "Returning #{fake_units.size} fake service units." }
            return fake_units
          {% else %}
            Log.debug { "Executing Journalctl.known_service_units" }
            # Using systemctl to list service units.
            # --type=service: Only list service units.
            # --all: Show all loaded units, including inactive ones.
            # --no-legend: Suppress the legend header and footer.
            # --plain: Output a plain list without ANSI escape codes or truncation.
            command = ["systemctl", "list-units", "--type=service", "--all", "--no-legend", "--plain"]

            Log.debug { "Generated systemctl command: #{command.inspect}" }

            stdout = IO::Memory.new
            result = Process.run(
              command[0],
              args: command[1..],
              output: stdout,
            )

And then it rips of all actual info except for the unit name itself:

github.com

ralsina/grafito/blob/main/src/journalctl.cr#L366



                command[0],
                args: command[1..],
                output: stdout,
              )

              if result.normal_exit?
                known_units = Set(String).new
                stdout.to_s.split("\n").each do |line|
                  next if line.strip.empty? # Skip empty or whitespace-only lines
                  # The first word on each line should be the unit name.
                  unit_name = line.split(" ").first?
                  known_units.add(unit_name) if unit_name
                end
                Log.debug { "Found #{known_units.size} unique service units." }
                known_units.to_a.sort
              else
                Log.error { "systemctl command failed with exit code: #{result}. Stdout: #{stdout.to_s[0..100]}" }
                nil
              end
            {% end %}
          rescue ex

So it does not even care about the additional info that the systemctl call returns …

Judging by the output I get on my machine, apparently systemctl even ignores all of /etc/systemd/system in that call

So what you could do in packaging now is to ship a script called systemctl in your snap that looks like:

#! /bin/sh

for line in $(ls /lib/systemd/system/*.service); do
    echo $(basename $line) foo
done

That should give you the same output in a format the code of grafito can process (you need “foo” there in the printed output so grafito finds something to rip off at the end of the line with its “line.split…” call)

Indeed it would be cleaner if upstream would just not call systemctl at all and do the ls themselves from their code to make it easier for you to roll a snap, but there is definitely a way to hack around that limitation in packaging and make it work as a strict snap …

ralsina · July 15, 2025, 12:04am

There is now a compile-time option that disables the call to systemctl
