Screen Rotation Ubuntu Core + Ubuntu-frame + wpe-mir-kiosk

manoellopes · November 30, 2022, 12:43pm

Hi Guys, I am working on a project and I am using a MINIX mini PC with Ubuntu Core on it.

I can ssh into it just fine, As I am following this TUTORIAL

the issue I have is I am not able to rotate the screen to the right or left, Follow the picture of the issue.

I have tried turning the screen with the following command but no success yet.

    snap set ubuntu-frame display="
    layouts:
      default:
    cards:
    - card-id: 0
      unknown-1:
        orientation: right
    "

Some more info the screen is touch and the touch is working fine as we need it to work with touch Does anyone come to this before and knows how to solve it? please?

alan_g · November 30, 2022, 2:04pm

That indentation looks wrong. Try:

snap set ubuntu-frame display="
layouts:
  default:
    cards:
    - card-id: 0
      unknown-1:
        orientation: right
"

You should check the ubuntu-frame log for errors:

snap logs -n 100 ubuntu-frame

manoellopes · November 30, 2022, 3:01pm

Hi Alan, thanks for your reply !

I did run the command you suggested there but no changes still.

Found out the name of the screen is not unknow-1 and changed that to HDMI-A based on the logs but did not help much

manoellopes · November 30, 2022, 3:05pm

And after running it the values for orientation still normal, tried with sudo as well.

alan_g · November 30, 2022, 3:08pm

@manoellopes it would be much easier to read if you cut & paste the logs instead of grabbing screenshots.

Anyway, the log just above the top of the first screenshot contains a template for the display configuration.

manoellopes · November 30, 2022, 3:18pm

Hey Alan, sorry for the screenshots.

snap logs -n 100 ubuntu-frame
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.208172] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/graphics-gbm-kms.so.20
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.208268] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/server-x11.so.20
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.208332] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/input-evdev.so.8
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.212100] <information> mirserver: Found display driver: mir:gbm-kms (version 2.10.0)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.218747] < - debug - > gbm-kms: Quirks: checking device with devnode: /dev/dri/card0, driver i915
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.219577] <information> gbm-kms: Failed to probe DRM device: /build/mir-hLziaV/mir-2.10.0/src/server/console/linux_virtual_terminal.cpp(167): Throw in function {anonymous}::DRMDevice::DRMDevice(mir::VTFileOperations&, const char*, std::unique_ptr<mir::Device::Observer>, const std::shared_ptr<mir::LinuxVirtualTerminal::DeviceList>&)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: Dynamic exception type: boost::wrapexcept<std::system_error>
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: std::exception::what: Failed to claim DRM master: Device or resource busy
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [boost::errinfo_file_name_*] = /dev/dri/card0
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.220212] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.220800] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.221357] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.222012] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.222171] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.222239] <information> mirserver: Found display driver: mir:x11 (version 2.10.0)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: [2022-11-30 15:17:46.222384] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/default_configuration.cpp(233): Throw in function virtual const std::vector<std::shared_ptr<mir::graphics::DisplayPlatform> >& mir::DefaultServerConfiguration::the_display_platforms()
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: std::exception::what: Exception while creating graphics platform
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/platform_probe.cpp(190): Throw in function std::vector<std::pair<mir::graphics::SupportedDevice, std::shared_ptr<mir::SharedLibrary> > > {anonymous}::modules_for_device({anonymous}::ModuleType, const std::vector<std::shared_ptr<mir::SharedLibrary> >&, const mir::options::ProgramOption&, const std::shared_ptr<mir::ConsoleServices>&)
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:46Z ubuntu-frame.daemon[10190]: std::exception::what: Failed to find any platforms for current system
2022-11-30T15:17:46Z systemd[1]: snap.ubuntu-frame.daemon.service: Main process exited, code=exited, status=1/FAILURE
2022-11-30T15:17:46Z systemd[1]: snap.ubuntu-frame.daemon.service: Failed with result 'exit-code'.
2022-11-30T15:17:49Z systemd[1]: snap.ubuntu-frame.daemon.service: Scheduled restart job, restart counter is at 13.
2022-11-30T15:17:49Z systemd[1]: Stopped Service for snap application ubuntu-frame.daemon.
2022-11-30T15:17:49Z systemd[1]: Started Service for snap application ubuntu-frame.daemon.
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + exec nohup /snap/ubuntu-frame/4455/bin/run-frame /snap/ubuntu-frame/4455/usr/local/bin/frame
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + [ /snap/ubuntu-frame/4455/usr/local/bin/frame = --help ]
2022-11-30T15:17:49Z ubuntu-frame.daemon[10288]: + dirname /run/user/0/snap.ubuntu-frame
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + XDG_RUNTIME_DIR=/run/user/0
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + export XDG_RUNTIME_DIR
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + mkdir -p /run/user/0 -m 700
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + [ -n  ]
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: + exec /snap/ubuntu-frame/4455/usr/local/bin/frame
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.737660] <information> mirserver: Starting
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.740257] < - debug - > mirserver: Using Linux VT subsystem for session management
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.741721] <information> mircommon: Loading modules from: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.742117] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/graphics-gbm-kms.so.20
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.742281] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/server-x11.so.20
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.742347] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/input-evdev.so.8
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.746198] <information> mirserver: Found display driver: mir:gbm-kms (version 2.10.0)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.754483] < - debug - > gbm-kms: Quirks: checking device with devnode: /dev/dri/card0, driver i915
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.755955] <information> gbm-kms: Failed to probe DRM device: /build/mir-hLziaV/mir-2.10.0/src/server/console/linux_virtual_terminal.cpp(167): Throw in function {anonymous}::DRMDevice::DRMDevice(mir::VTFileOperations&, const char*, std::unique_ptr<mir::Device::Observer>, const std::shared_ptr<mir::LinuxVirtualTerminal::DeviceList>&)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: Dynamic exception type: boost::wrapexcept<std::system_error>
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: std::exception::what: Failed to claim DRM master: Device or resource busy
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [boost::errinfo_file_name_*] = /dev/dri/card0
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.756822] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.757510] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.758233] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.758908] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.759086] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.759172] <information> mirserver: Found display driver: mir:x11 (version 2.10.0)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: [2022-11-30 15:17:49.759340] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/default_configuration.cpp(233): Throw in function virtual const std::vector<std::shared_ptr<mir::graphics::DisplayPlatform> >& mir::DefaultServerConfiguration::the_display_platforms()
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: std::exception::what: Exception while creating graphics platform
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/platform_probe.cpp(190): Throw in function std::vector<std::pair<mir::graphics::SupportedDevice, std::shared_ptr<mir::SharedLibrary> > > {anonymous}::modules_for_device({anonymous}::ModuleType, const std::vector<std::shared_ptr<mir::SharedLibrary> >&, const mir::options::ProgramOption&, const std::shared_ptr<mir::ConsoleServices>&)
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:49Z ubuntu-frame.daemon[10267]: std::exception::what: Failed to find any platforms for current system
2022-11-30T15:17:49Z systemd[1]: snap.ubuntu-frame.daemon.service: Main process exited, code=exited, status=1/FAILURE
2022-11-30T15:17:49Z systemd[1]: snap.ubuntu-frame.daemon.service: Failed with result 'exit-code'.
2022-11-30T15:17:52Z systemd[1]: snap.ubuntu-frame.daemon.service: Scheduled restart job, restart counter is at 14.
2022-11-30T15:17:52Z systemd[1]: Stopped Service for snap application ubuntu-frame.daemon.
2022-11-30T15:17:52Z systemd[1]: Started Service for snap application ubuntu-frame.daemon.
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + exec nohup /snap/ubuntu-frame/4455/bin/run-frame /snap/ubuntu-frame/4455/usr/local/bin/frame
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + [ /snap/ubuntu-frame/4455/usr/local/bin/frame = --help ]
2022-11-30T15:17:53Z ubuntu-frame.daemon[10466]: + dirname /run/user/0/snap.ubuntu-frame
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + XDG_RUNTIME_DIR=/run/user/0
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + export XDG_RUNTIME_DIR
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + mkdir -p /run/user/0 -m 700
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + [ -n  ]
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: + exec /snap/ubuntu-frame/4455/usr/local/bin/frame
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.235146] <information> mirserver: Starting
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.236470] < - debug - > mirserver: Using Linux VT subsystem for session management
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.237097] <information> mircommon: Loading modules from: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.237347] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/graphics-gbm-kms.so.20
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.237473] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/server-x11.so.20
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.237540] <information> mircommon: Loading module: /snap/ubuntu-frame/4455/usr/lib/x86_64-linux-gnu/mir/server-platform/input-evdev.so.8
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.241821] <information> mirserver: Found display driver: mir:gbm-kms (version 2.10.0)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.249537] < - debug - > gbm-kms: Quirks: checking device with devnode: /dev/dri/card0, driver i915
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.250383] <information> gbm-kms: Failed to probe DRM device: /build/mir-hLziaV/mir-2.10.0/src/server/console/linux_virtual_terminal.cpp(167): Throw in function {anonymous}::DRMDevice::DRMDevice(mir::VTFileOperations&, const char*, std::unique_ptr<mir::Device::Observer>, const std::shared_ptr<mir::LinuxVirtualTerminal::DeviceList>&)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: Dynamic exception type: boost::wrapexcept<std::system_error>
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: std::exception::what: Failed to claim DRM master: Device or resource busy
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [boost::errinfo_file_name_*] = /dev/dri/card0
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.250988] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.251477] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.251960] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.252456] < - debug - > gbm-kms: Quirks: checking device with devnode: (null), driver
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.252594] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.252662] <information> mirserver: Found display driver: mir:x11 (version 2.10.0)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: [2022-11-30 15:17:53.252799] <information> mirserver: (Unsupported by system environment)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/default_configuration.cpp(233): Throw in function virtual const std::vector<std::shared_ptr<mir::graphics::DisplayPlatform> >& mir::DefaultServerConfiguration::the_display_platforms()
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: std::exception::what: Exception while creating graphics platform
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: ERROR: /build/mir-hLziaV/mir-2.10.0/src/server/graphics/platform_probe.cpp(190): Throw in function std::vector<std::pair<mir::graphics::SupportedDevice, std::shared_ptr<mir::SharedLibrary> > > {anonymous}::modules_for_device({anonymous}::ModuleType, const std::vector<std::shared_ptr<mir::SharedLibrary> >&, const mir::options::ProgramOption&, const std::shared_ptr<mir::ConsoleServices>&)
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: Dynamic exception type: boost::wrapexcept<std::runtime_error>
2022-11-30T15:17:53Z ubuntu-frame.daemon[10444]: std::exception::what: Failed to find any platforms for current system
2022-11-30T15:17:53Z systemd[1]: snap.ubuntu-frame.daemon.service: Main process exited, code=exited, status=1/FAILURE
2022-11-30T15:17:53Z systemd[1]: snap.ubuntu-frame.daemon.service: Failed with result 'exit-code'.

manoellopes · November 30, 2022, 3:38pm

Alan my friend thanks for the help sort it out

used:

snap set ubuntu-frame display="
layouts:
# keys here are layout labels (used for atomically switching between them)
# when enabling displays, surfaces should be matched in reverse recency order
  default:                         # the default layout
    cards:
    # a list of cards (currently matched by card-id)
    - card-id: 0
      DisplayPort-1:
        # (disconnected)
      HDMI-A-1:
        # This output supports the following modes: 1920x1080@60.0, 1920x1080@59.9,
        # 1920x1080@30.0, 1920x1080@30.0, 1920x1080@50.0, 1920x1080@25.0, 1680x1050@59.9,
        # 1280x1024@75.0, 1280x1024@60.0, 1440x900@75.0, 1440x900@59.9, 1280x960@60.0,
        # 1152x864@75.0, 1280x720@60.0, 1280x720@59.9, 1280x720@50.0, 1440x576@50.0,
        # 1024x768@75.0, 1024x768@70.1, 1024x768@60.0, 800x600@75.0, 800x600@60.3,
        # 800x600@56.2, 720x576@50.0, 720x480@60.0, 720x480@59.9, 640x480@75.0,
        # 640x480@66.7, 640x480@60.0, 640x480@59.9, 720x400@70.1
        #
        # Uncomment the following to enforce the selected configuration.
        # Or amend as desired.
        #
         state: enabled        # {enabled, disabled}, defaults to enabled
         mode: 1920x1080@60.0  # Defaults to preferred mode
         position: [0, 0]      # Defaults to [0, 0]
         orientation: right   # {normal, left, right, inverted}, defaults to normal
         scale: 1
         group: 0      # Outputs with the same non-zero value are treated as a single display
      DisplayPort-2:
        # (disconnected)
      HDMI-A-2:
        # (disconnected)
"

alan_g · November 30, 2022, 6:02pm

Could you flag the topic as solved? It will help others with the same problem

jkbkster · January 8, 2023, 6:46pm

Hi all … N00b here … Trying out an Ubuntu 22 Core running a web-kiosk showing the departure board at my local station. (Running on a Raspberry 3).

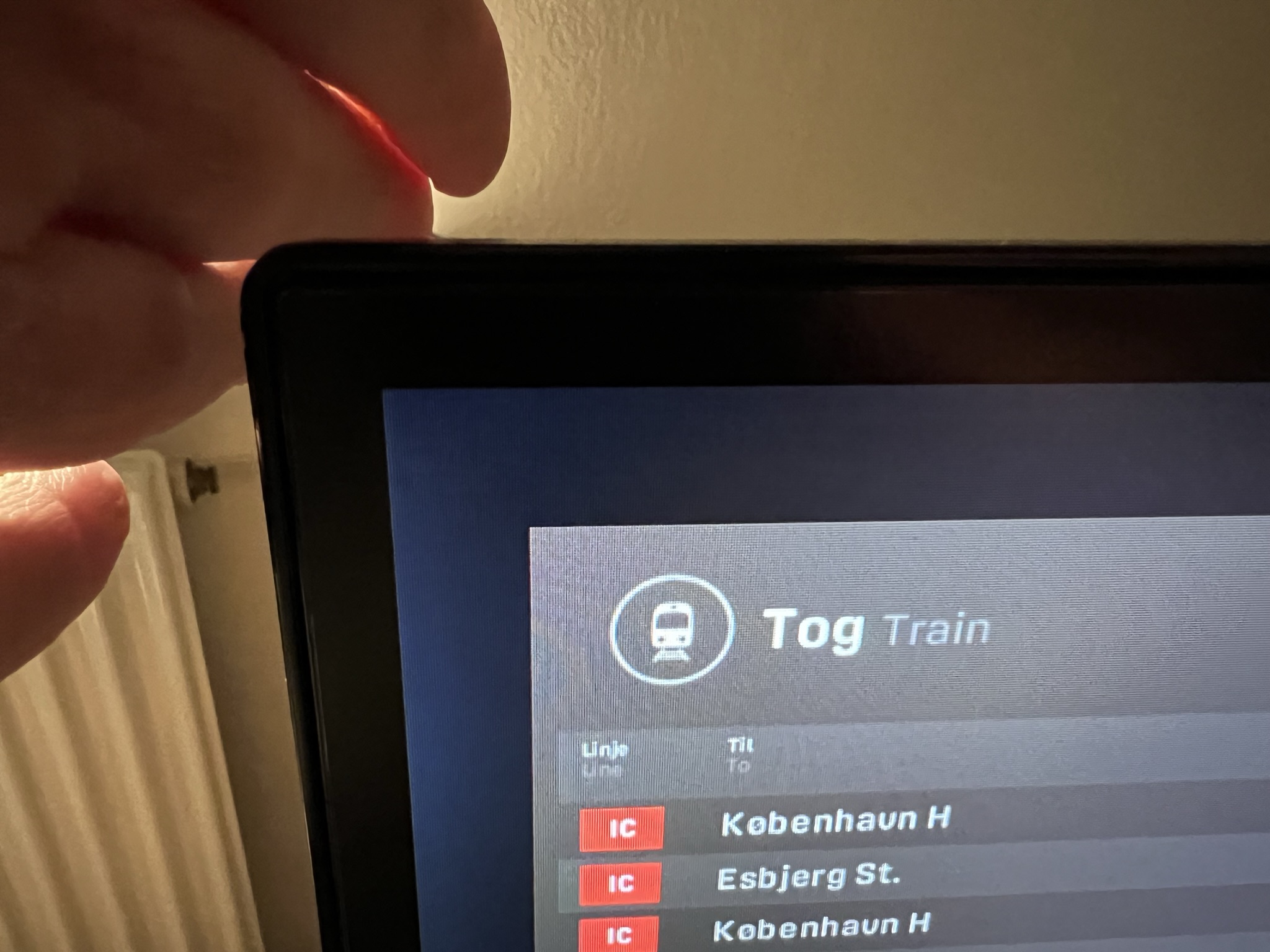

The web-kiosk is not using the full display, so somehow I need to resize…

Any ideas ?

jkbkstr@ubuntu:~$ snap logs -n 100 ubuntu-frame 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.128000] mirserver: /devices/platform/soc/soc:gpu/drm/renderD128 (priority 256) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.128090] mirserver: Found rendering driver: mir:x11 (version 2.10.0) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.128157] mirserver: (Unsupported by system environment) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.128472] mirserver: Selected rendering driver: mir:gbm-kms (version 2.10.0) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.180813] < -warning- > gbm-kms: Unable to determine the current display mode. 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.186684] gbm-kms: DRM device details: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.186960] gbm-kms: /dev/dri/card0: using driver vc4 [Broadcom VC4 graphics] (version: 0.0.0 driver date: 20140616) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212160] gbm-kms: Output: HDMI-A-1 (connected) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212382] gbm-kms: Mode: 1920×1080@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212470] gbm-kms: Mode: 1920×1080@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212535] gbm-kms: Mode: 1920×1080@59.94 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212619] gbm-kms: Mode: 1920×1080@50.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212681] gbm-kms: Mode: 1680×1050@59.88 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212742] gbm-kms: Mode: 1600×900@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212802] gbm-kms: Mode: 1280×1024@60.01 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212862] gbm-kms: Mode: 1440×900@59.90 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212920] gbm-kms: Mode: 1280×720@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.212983] gbm-kms: Mode: 1280×720@59.94 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213054] gbm-kms: Mode: 1280×720@50.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213113] gbm-kms: Mode: 1024×768@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213171] gbm-kms: Mode: 800×600@60.31 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213229] gbm-kms: Mode: 720×576@50.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213287] gbm-kms: Mode: 720×480@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213349] gbm-kms: Mode: 720×480@59.94 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213411] gbm-kms: Mode: 640×480@60.00 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213468] gbm-kms: Mode: 640×480@59.94 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213526] gbm-kms: Mode: 720×400@70.08 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213615] < - debug - > miral: Display config using layout: ‘default’ 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.213977] miral: Display config: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: 8>< --------------------------------------------------- 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: layouts: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # keys here are layout labels (used for atomically switching between them) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # when enabling displays, surfaces should be matched in reverse recency order 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: default: # the default layout 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: cards: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # a list of cards (currently matched by card-id) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: - card-id: 0 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: HDMI-A-1: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # This output supports the following modes: 1920x1080@60.0, 1920x1080@60.0, 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 1920x1080@59.9, 1920x1080@50.0, 1680x1050@59.9, 1600x900@60.0, 1280x1024@60.0, 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 1440x900@59.9, 1280x720@60.0, 1280x720@59.9, 1280x720@50.0, 1024x768@60.0, 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 800x600@60.3, 720x576@50.0, 720x480@60.0, 720x480@59.9, 640x480@60.0, 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 640x480@59.9, 720x400@70.1 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # Uncomment the following to enforce the selected configuration. 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # Or amend as desired. 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # state: enabled # {enabled, disabled}, defaults to enabled 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # mode: 1920x1080@60.0 # Defaults to preferred mode 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # position: [0, 0] # Defaults to [0, 0] 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # orientation: normal # {normal, left, right, inverted}, defaults to normal 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # scale: 1 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: # group: 0 # Outputs with the same non-zero value are treated as a single display 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: 8>< --------------------------------------------------- 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.264217] < -warning- > gbm-kms: drmModeCrtcSetGamma failed: Function not implemented 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.377367] gbm-kms: Detected single-GPU DisplayBuffer. Rendering will be sent directly to output 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.411189] mirserver: Using hardware cursor 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: xkbcommon: ERROR: couldn’t find a Compose file for locale “C.UTF-8” 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.489505] GLRenderer: EGL vendor: Mesa Project 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.489734] GLRenderer: EGL version: 1.4 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.489820] GLRenderer: EGL client APIs: OpenGL OpenGL_ES 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.489918] GLRenderer: EGL extensions: EGL_ANDROID_blob_cache EGL_ANDROID_native_fence_sync EGL_EXT_buffer_age EGL_EXT_image_dma_buf_import EGL_EXT_image_dma_buf_import_modifiers EGL_KHR_cl_event2 EGL_KHR_config_attribs EGL_KHR_create_context EGL_KHR_create_context_no_error EGL_KHR_fence_sync EGL_KHR_get_all_proc_addresses EGL_KHR_gl_colorspace EGL_KHR_gl_renderbuffer_image EGL_KHR_gl_texture_2D_image EGL_KHR_gl_texture_3D_image EGL_KHR_gl_texture_cubemap_image EGL_KHR_image EGL_KHR_image_base EGL_KHR_image_pixmap EGL_KHR_no_config_context EGL_KHR_reusable_sync EGL_KHR_surfaceless_context EGL_EXT_pixel_format_float EGL_KHR_wait_sync EGL_MESA_configless_context EGL_MESA_drm_image EGL_MESA_image_dma_buf_export EGL_MESA_query_driver EGL_WL_bind_wayland_display 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490023] GLRenderer: GL vendor: Broadcom 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490109] GLRenderer: GL renderer: VC4 V3D 2.1 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490169] GLRenderer: GL version: OpenGL ES 2.0 Mesa 21.2.6 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490228] GLRenderer: GLSL version: OpenGL ES GLSL ES 1.0.16 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490451] GLRenderer: GL extensions: GL_EXT_blend_minmax GL_EXT_multi_draw_arrays GL_EXT_texture_format_BGRA8888 GL_OES_compressed_ETC1_RGB8_texture GL_OES_depth24 GL_OES_element_index_uint GL_OES_fbo_render_mipmap GL_OES_mapbuffer GL_OES_rgb8_rgba8 GL_OES_stencil8 GL_OES_texture_3D GL_OES_texture_npot GL_OES_vertex_half_float GL_OES_EGL_image GL_OES_depth_texture GL_AMD_performance_monitor GL_OES_packed_depth_stencil GL_OES_get_program_binary GL_APPLE_texture_max_level GL_EXT_discard_framebuffer GL_EXT_read_format_bgra GL_EXT_frag_depth GL_NV_fbo_color_attachments GL_OES_EGL_image_external GL_OES_EGL_sync GL_OES_vertex_array_object GL_ANGLE_pack_reverse_row_order GL_EXT_occlusion_query_boolean GL_EXT_unpack_subimage GL_NV_draw_buffers GL_NV_read_buffer GL_NV_read_depth GL_NV_read_depth_stencil GL_NV_read_stencil GL_EXT_draw_buffers GL_EXT_map_buffer_range GL_KHR_debug GL_KHR_texture_compression_astc_ldr GL_NV_pixel_buffer_object GL_OES_required_internalformat GL_OES_surfaceless_context GL_EXT_separate_shader_objects GL_EXT_compressed_ETC1_RGB8_sub_texture GL_EXT_draw_elements_base_vertex GL_EXT_texture_border_clamp GL_KHR_context_flush_control GL_OES_draw_elements_base_vertex GL_OES_texture_border_clamp GL_KHR_no_error GL_KHR_texture_compression_astc_sliced_3d GL_KHR_parallel_shader_compile GL_MESA_tile_raster_order GL_MESA_bgra 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.490588] GLRenderer: GL max texture size = 2048 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.494845] GLRenderer: GL framebuffer bits: RGBA=0000, depth=0, stencil=0 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.496820] gbm-kms-buffer-allocator: Enabled linux-dmabuf import support 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.498643] mircommon: Loading modules from: /snap/ubuntu-frame/4459/usr/lib/aarch64-linux-gnu/mir/server-platform 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.499129] mircommon: Loading module: /snap/ubuntu-frame/4459/usr/lib/aarch64-linux-gnu/mir/server-platform/graphics-gbm-kms.so.20 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.499523] mircommon: Loading module: /snap/ubuntu-frame/4459/usr/lib/aarch64-linux-gnu/mir/server-platform/server-x11.so.20 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.499709] mircommon: Loading module: /snap/ubuntu-frame/4459/usr/lib/aarch64-linux-gnu/mir/server-platform/input-evdev.so.8 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.568667] mirserver: Selected input driver: mir:evdev-input (version: 2.10.0) 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.580616] mirserver: Mir version 2.10.0 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594381] GLRenderer: EGL vendor: Mesa Project 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594616] GLRenderer: EGL version: 1.4 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594705] GLRenderer: EGL client APIs: OpenGL OpenGL_ES 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594823] GLRenderer: EGL extensions: EGL_ANDROID_blob_cache EGL_ANDROID_native_fence_sync EGL_EXT_buffer_age EGL_EXT_image_dma_buf_import EGL_EXT_image_dma_buf_import_modifiers EGL_KHR_cl_event2 EGL_KHR_config_attribs EGL_KHR_create_context EGL_KHR_create_context_no_error EGL_KHR_fence_sync EGL_KHR_get_all_proc_addresses EGL_KHR_gl_colorspace EGL_KHR_gl_renderbuffer_image EGL_KHR_gl_texture_2D_image EGL_KHR_gl_texture_3D_image EGL_KHR_gl_texture_cubemap_image EGL_KHR_image EGL_KHR_image_base EGL_KHR_image_pixmap EGL_KHR_no_config_context EGL_KHR_reusable_sync EGL_KHR_surfaceless_context EGL_EXT_pixel_format_float EGL_KHR_wait_sync EGL_MESA_configless_context EGL_MESA_drm_image EGL_MESA_image_dma_buf_export EGL_MESA_query_driver EGL_WL_bind_wayland_display 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594898] GLRenderer: GL vendor: Broadcom 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.594956] GLRenderer: GL renderer: VC4 V3D 2.1 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.595014] GLRenderer: GL version: OpenGL ES 2.0 Mesa 21.2.6 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.595079] GLRenderer: GLSL version: OpenGL ES GLSL ES 1.0.16 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.595935] GLRenderer: GL extensions: GL_EXT_blend_minmax GL_EXT_multi_draw_arrays GL_EXT_texture_format_BGRA8888 GL_OES_compressed_ETC1_RGB8_texture GL_OES_depth24 GL_OES_element_index_uint GL_OES_fbo_render_mipmap GL_OES_mapbuffer GL_OES_rgb8_rgba8 GL_OES_stencil8 GL_OES_texture_3D GL_OES_texture_npot GL_OES_vertex_half_float GL_OES_EGL_image GL_OES_depth_texture GL_AMD_performance_monitor GL_OES_packed_depth_stencil GL_OES_get_program_binary GL_APPLE_texture_max_level GL_EXT_discard_framebuffer GL_EXT_read_format_bgra GL_EXT_frag_depth GL_NV_fbo_color_attachments GL_OES_EGL_image_external GL_OES_EGL_sync GL_OES_vertex_array_object GL_ANGLE_pack_reverse_row_order GL_EXT_occlusion_query_boolean GL_EXT_unpack_subimage GL_NV_draw_buffers GL_NV_read_buffer GL_NV_read_depth GL_NV_read_depth_stencil GL_NV_read_stencil GL_EXT_draw_buffers GL_EXT_map_buffer_range GL_KHR_debug GL_KHR_texture_compression_astc_ldr GL_NV_pixel_buffer_object GL_OES_required_internalformat GL_OES_surfaceless_context GL_EXT_separate_shader_objects GL_EXT_compressed_ETC1_RGB8_sub_texture GL_EXT_draw_elements_base_vertex GL_EXT_texture_border_clamp GL_KHR_context_flush_control GL_OES_draw_elements_base_vertex GL_OES_texture_border_clamp GL_KHR_no_error GL_KHR_texture_compression_astc_sliced_3d GL_KHR_parallel_shader_compile GL_MESA_tile_raster_order GL_MESA_bgra 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.596108] GLRenderer: GL max texture size = 2048 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.596208] GLRenderer: GL framebuffer bits: RGBA=8880, depth=0, stencil=0 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.638965] mirserver: Initial display configuration: 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.640187] mirserver: * Output 1: HDMI-A connected, used 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.641113] mirserver: . |_ EDID monitor name: HP 23xi 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.641900] mirserver: . |_ EDID manufacturer: HWP 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.642646] mirserver: . |_ EDID product code: 12338 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.643316] mirserver: . |_ Physical size 23.1" 510x290mm 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.644767] mirserver: . |_ Power is on 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.645978] mirserver: . |_ Current mode 1920x1080 60.00Hz 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.647190] mirserver: . |_ Preferred mode 1920x1080 60.00Hz 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.648135] mirserver: . |_ Orientation normal 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.649007] mirserver: . |_ Logical size 1920x1080 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.649899] mirserver: . |_ Logical position +0+0 2023-01-08T17:53:16Z ubuntu-frame.daemon[7713]: [2023-01-08 17:53:16.650908] mirserver: . |_ Scaling factor: 1.00 jkbkstr@ubuntu:~$

ogra · January 8, 2023, 11:09pm

This is the pi hardware trying to be conservative with your monitor… try setting the disable-overscan system option, that should tell the bootloader to use all screen estate:
